16709

Price: $495.00

Item Number: 16709

Quantity:

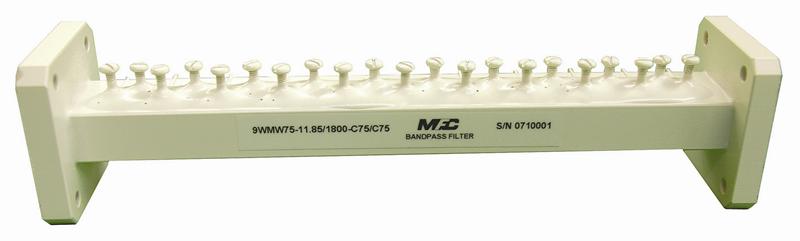

True “bandpass” characteristics make this filter the choice to reject interference from the transmit band above and potential interference from sources below the operating band, making it more versatile than a simple transmit reject filter.

Specifications:

Passband:...................... 10.95 - 12.75 GHz

Insertion Loss:................ 0.5 dB Max

Passband VSWR:......... 1.2:1 Max

Rejection:........................ 50 dB Min at 14.0-14.5 GHZ

........................................ 50 dB Min from 10.40-10.60 GHz

Pressurization:............... Sealed to 5 PSIG

Flanges:.......................... WR75 Cover
