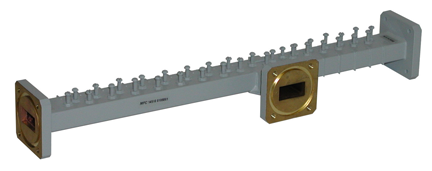

The model 14510 diplexer is used to combine the downlink and uplink bands to allow for simultaneous transmit and receive operation. Each portion of the diplexer has integrated bandpass filters, matched for optimal system performance. By combining the individual bandpass filters into a single diplexer,only a single waveguide run on the transmit tower is required, reducing cost and improving signal quality.

Diplexer Model 14510
Uplink Downlink
Passband.......................14.0-14.5 GHz.............11.7-12.2 GHz
Insertion Loss................0.35 dB Max.................0.35 dB Max
VSWR..............................1.375:1 Max..................1.375:1 Max
Isolation..........................80 dB Min.....................80 dB Min

Mechanical Specifications:
Dimensions: 10.75"L x 1.5"H x 2.125"W

Common Options:
Units are made of WR75 waveguide and come standard with cover flanges.Each unit can be custom built for single channel or partial satellite bands,with connectors and mechanical configurations designed to meet customer requirements.
